Front Brake Hub Assy (Drum Brake, Inc. Speedo Drive, Brake Shoe, Fr. Axle)

Parts Number: ZA045-4101-K01-00


Honda Z50 Aftermarket Parts


KEY INFORMATIONS
 THIS IS AFTERMARKET PARTS FOR HONDA Z50 MONKEY BIKE.

PRODUCT DETAILS

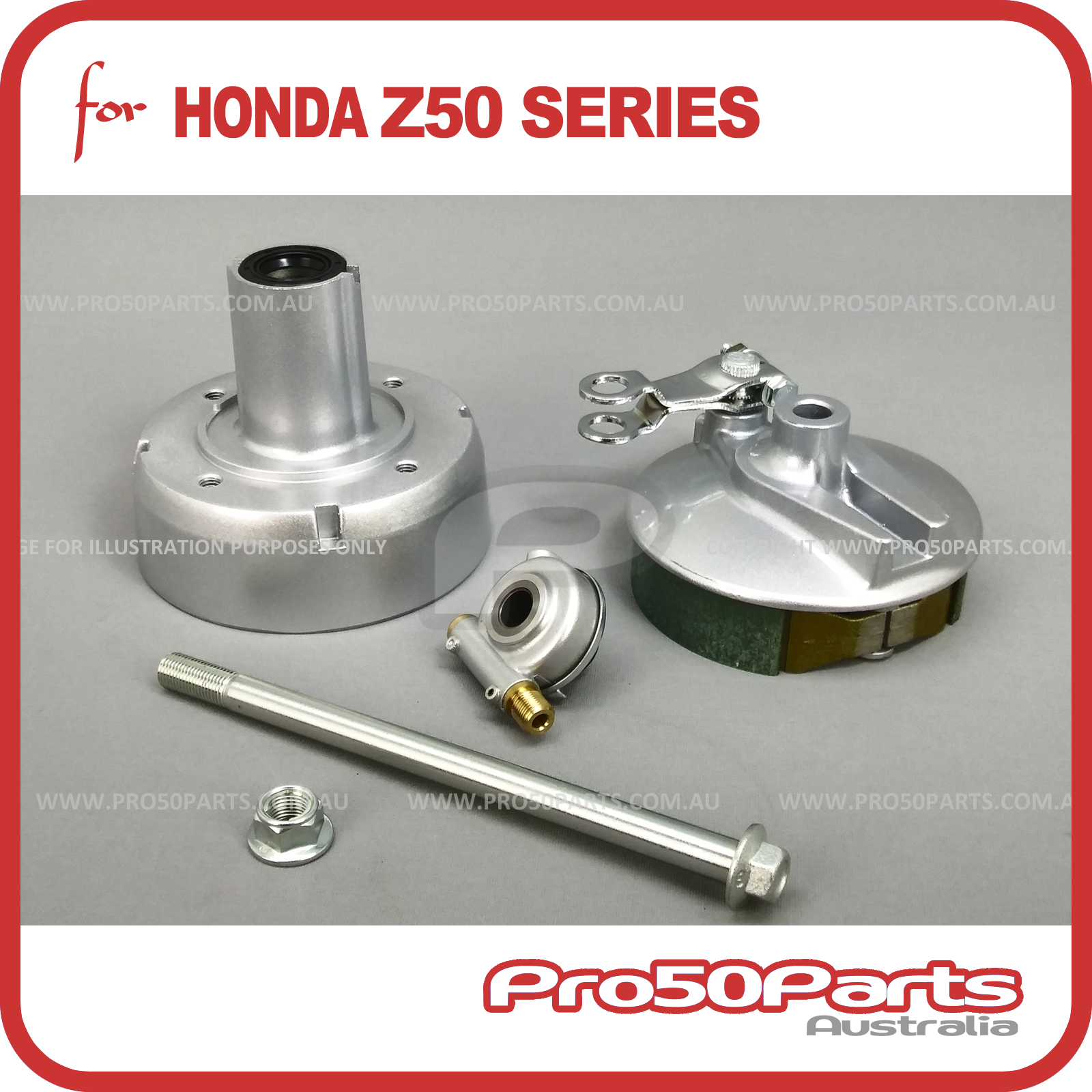

  • Brand New Honda Z50 Front Brake Drum Hub Assy (Drum Brake)
  • Excellent Quality Standard Front Brake Drum Hub Assy (Drum Brake)
  • This Aftermarket Front Drum Brake Is To Be Used On Most Honda Monkey Bike.
  • Inc. Brake shoe, Speedo drive and Front wheel axle.

TYPE Aftermarket Parts for Honda Z50 Monkey Bike WEIGHT 2.00kg
MATERIAL FINISH Alloy SIZE 80mm (L) x160mm (W) x 90mm (H)
INSTALLATION Moderate DIY - Basic mechanical skill required  COLOUR Alloy Chrome Silver

SPECIFICATION

* Refer photo above for dimension details.

(A) Distance Mounting Hole: 65mm
(B) Diameter Speedo Drive Rim: 40mm
(C) Diameter of Inner Hub: 75mm
(D) Axle Hold Diameter: 12mm

(E) Distance between End to End: 140mm
(F) Distance between End to Speedo Drive: 155mm
(G) Number of Mounting Holes/ Studs: 4



THIS PACKAGE INCLUDES
1 x Front Brake Hub
1 x Brake Shoe
1 x Speedo Drive
1 x Axle, Front Wheel

RECOMMENDATIONS & ADVICES
Please note:
*Some model of Z50R is 3 bolts mounting holes and studs.

Corresponding Genuine Parts Number

- - - - -

Compatible Genuine Models List

1967 Honda Z50M No     1979-1987 Honda Z50R No
1968-1969 Honda Z50A K0 Yes 1988-1999 Honda Z50R No
1969-1970 Honda Z50A K1 Yes
1970-1971 Honda Z50A K2 Yes 1978-1990 Honda Z50J (6v) Yes
      1991-2009 Honda Z50J (12v) Yes
1972 Honda Z50A K3 Yes 2009-2018 Honda Z50J (FI) Yes
1973 Honda Z50A K4 Yes
1974 Honda Z50A K5 Yes 1978-1988 Honda Z50G Gorilla (6v) Yes
1975 Honda Z50A K6 Yes 1998-2003 Honda Z50G Gorilla (12v) Yes
1976 Honda Z50A 76'/ Z50J1 Yes
1977 Honda Z50A 77'/ Z50J1 Yes - Honda Dax No
1978 Honda Z50A 78'/ Z50J1 Yes
SKU ZA045-4101-K01-00
Brand REPRODUCTION HONDA PARTS
Shipping Weight 2.0000kg
Shipping Width 0.010m
Shipping Height 0.010m
Shipping Length 0.010m
Shipping Cubic 0.000001000m3
Unit Of Measure ea
