70Cc-90Cc Piston Rebuild Kit & Gasket Kit (Top & Base)

Parts Number: ZMAFT-1221-070-KT


Honda Z50 Aftermarket Parts


KEY INFORMATIONS
 THIS IS AFTERMARKET PARTS FOR HONDA Z50 MONKEY BIKE.

PRODUCT DETAILS
  • Brand New Honda Z50 Piston Rebuild Kit & Gasket Kit, Top & Base (Suitable for 70cc - 90cc)
  • Excellent Quality Standard Piston Rebuild Kit & Gasket Kit, Top & Base (Suitable for 70cc - 90cc)
  • This Aftermarket Piston Rebuilt Kit Can Be Used On Any Honda CRF Engine Or Lifan Engine With The Capacity 70cc - 90cc.

TYPE Aftermarket Parts for Honda Z50 Monkey Bike WEIGHT 0.30kg
MATERIAL FINISH - SIZE -
INSTALLATION Difficult - Professional mechanical skill required    COLOUR -

SPECIFICATION

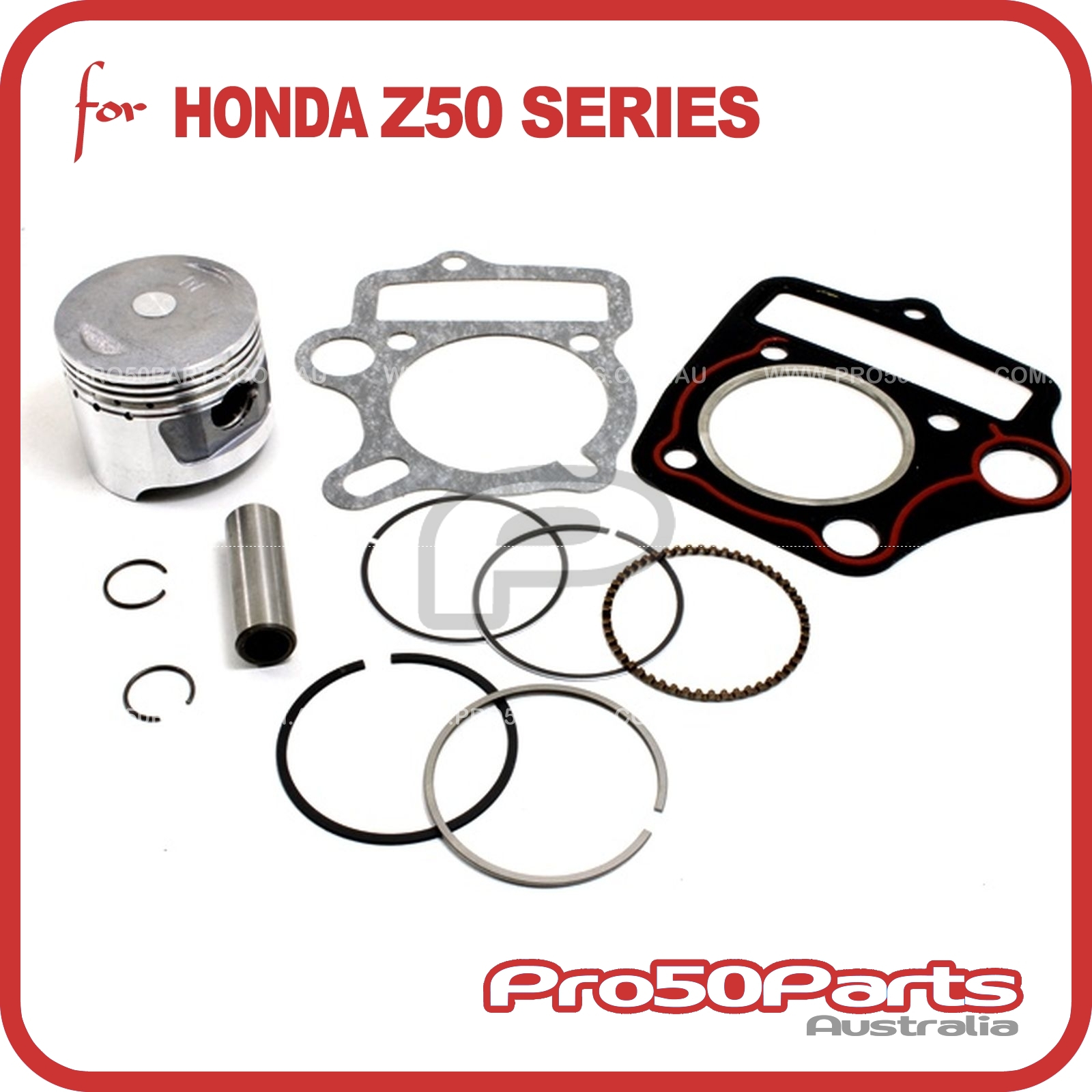

* Refer photo above for dimension details.

(A) Piston Diameter: 47mm
(B) Piston Height: 41.7mm
(C) Distance (Top edge to Centre of Pin Hole) : 17mm
(D) Pin Diameter: 13mm

(E) Pin Length: 38.2mm
(F) Diameter (Top Gasket): 48.4mm
(G) Diameter (Bottom Gasket): 56mm

THIS PACKAGE INCLUDES
1 x Piston
1 x Piston Rings
1 x Piston Pin
1 x Circlip Sets (2pcs/ Set)
1 x Top Gasket
1 x Bottom Gasket

RECOMMENDATIONS & ADVICES
 -

Corresponding Genuine Parts Number

- - - - -

Compatible Genuine Models List

1967 Honda Z50M Yes*     1979-1987 Honda Z50R Yes*
1968-1969 Honda Z50A K0 Yes* 1988-1999 Honda Z50R Yes
1969-1970 Honda Z50A K1 Yes*
1970-1971 Honda Z50A K2 Yes* 1978-1990 Honda Z50J (6v) Yes*
      1991-2009 Honda Z50J (12v) Yes*
1972 Honda Z50A K3 Yes* 2009-2018 Honda Z50J (FI) Yes*
1973 Honda Z50A K4 Yes*
1974 Honda Z50A K5 Yes* 1978-1988 Honda Z50G Gorilla (6v) Yes*
1975 Honda Z50A K6 Yes* 1998-2003 Honda Z50G Gorilla (12v) Yes*
1976 Honda Z50A 76'/ Z50J1 Yes*
1977 Honda Z50A 77'/ Z50J1 Yes*
1978 Honda Z50A 78'/ Z50J1 Yes*



* This 50cc Piston may have a different style from the Original Honda Engine Piston.

* This 50cc Piston Rebuild Kit can be used on Lifan engine with a capacity of 50cc.



SKU ZMAFT-1221-070-KT
Brand PRO50PARTS
Shipping Weight 0.5000kg
Shipping Width 0.010m
Shipping Height 0.010m
Shipping Length 0.010m
Shipping Cubic 0.000001000m3
Unit Of Measure set
